Molecular characterization of coxsackievirus A16 associated hand, foot and mouth disease in Anhui Province from 2021 to 2023

doi:10.20199/j.issn.1672-2302.2024.04.009

Abstract

Abstract:

Objective To understand the epidemic of hand, foot and mouth Disease (HFMD) in Anhui Province, and analyze the genetic types and the genetic evolution of the VP1 coding region of coxsackievirus A16 (CV-A16). Methods The data on the incidence of HFMD in Anhui Province were retrieved from the China Information System for Disease Prevention and Control from 2021 through 2023, and statistics was conducted regarding the incidence and composition of each enterovirus serotype of HFMD. The throat swab samples were collected from HFMD patients, and from which CV-A16 strains were isolated. Then the VP1 region of CV-A16 was amplified and sequenced. The genotype/sub genotype of CV-A16 strands was identified by using enterovirus online typing tool, MegAlign Pro sequence alignment software was used to compare the homology of nucleotides and amino acids. The phylogenetic tree of VP1 gene was constructed by biological software MEGA 6.0 Software, and the mutation at amino acid of VP1 gene was analyzed. Results A total of 155 640 HFMD cases were reported in Anhui Province from 2021 to 2023. The annual reported incidence was 84.83 /100 000. Between 2021 and 2023, a total of 12 643 laboratory confirmed cases of HFMD were reported in 16 cities in Anhui area, in which CV-A16 associated cases accounted for 18.16% (2 296/12 643). The annual constituent ratio of CV-A16 for each year was 25.81% (1 127/4 366), 33.69% (782/2 321) and 6.50% (387/5 956), respectively. Seventy-two CV-A16 strains were isolated from HFMD cases in Anhui Province from 2021 to 2023, in which 58 strains were associated with genetic subtypes of B1a and 14 from B1b, respectively accounting for 80.56% and 19.44%. The nucleotide and amino acid homology with the CV-A16 prototype strain G-10 was 73.80%-76.20% and 90.60%-92.30%. The B1a and B1b genotypes consisted of 4 sub-clusters and 3 sub-clusters in genetic evolution. A total of 72 VP1 gene sequences were compared with the prototype strain and 26 amino acid sites were mutated. Conclusion The main prevalent gene subtypes of HFMD CV-A16 in Anhui area from 2021 to 2023 were involved in B1a and B1b, and B1a was predominant. Our findings suggest that monitoring of CV-A16 epidemic strains should be strengthened in Anhui Province.

Key words: Hand, foot and mouth disease, Coxsackievirus A16, VP1 coding region, Phylogenetic analysis, Anhui Province

CLC Number:

R373.2

GE Yinglu, YANG Lingkang, LIU Yinuo, MA Wanwan, WANG Peng, SUN Yong, SHI Yonglin. Molecular characterization of coxsackievirus A16 associated hand, foot and mouth disease in Anhui Province from 2021 to 2023[J]. Journal of Tropical Diseases and Parasitology, 2024, 22(4): 233-238.

Figures/Tables 4

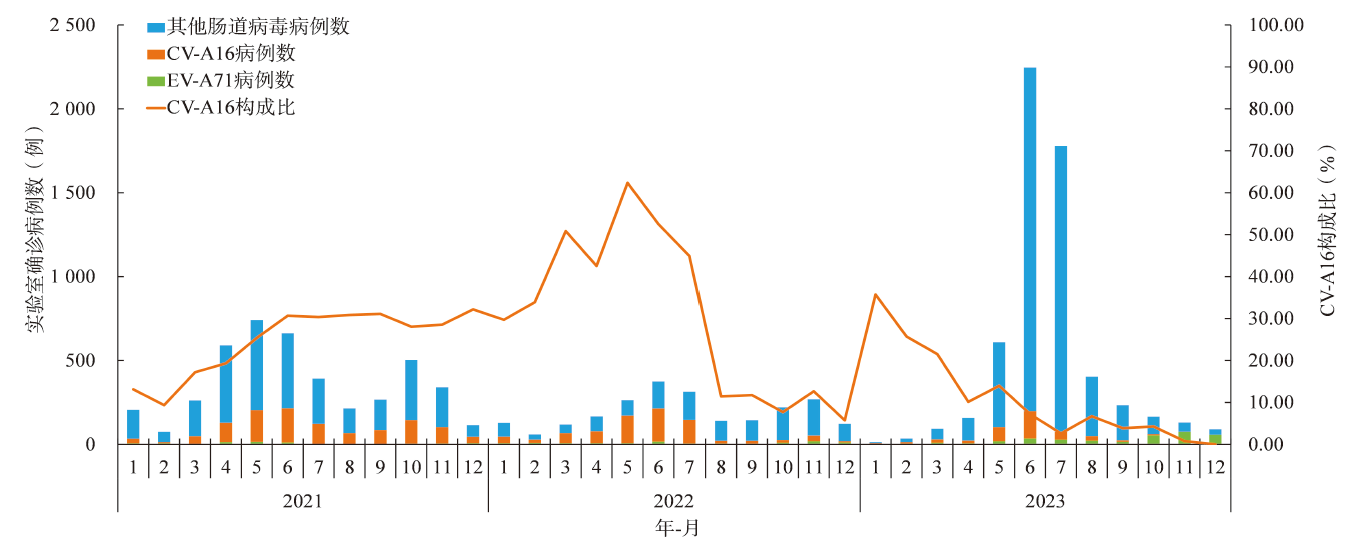

Figure 1

Table 1

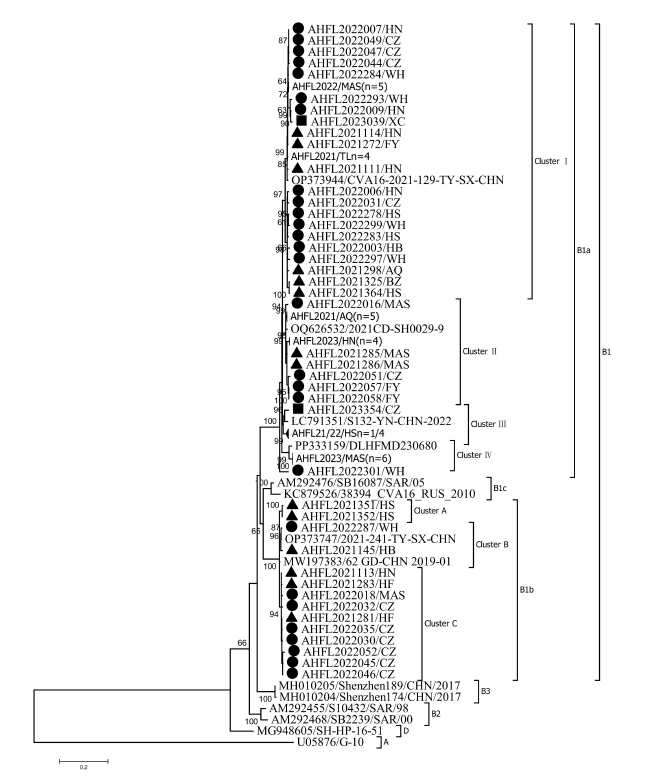

Figure 2

Table 2

References 27

[1]	Liu WY, Wu SM, Xiong Y, et al. Co-circulation and genomic recombination of coxsackievirus A16 and enterovirus 71 during a large outbreak of hand, foot, and mouth disease in Central China[J]. PLoS One, 2014, 9(4):e96051.
[2]	Esposito S, Principi N. Hand, foot and mouth disease: current knowledge on clinical manifestations, epidemiology, aetiology and prevention[J]. Eur J Clin Microbiol Infect Dis, 2018, 37(3):391-398.
[3]	Zhu Z, Zhu SL, Guo XB, et al. Retrospective seroepidemiology indicated that human enterovirus 71 and coxsackievirus A16 circulated wildly in central and Southern China before large-scale outbreaks from 2008[J]. Virol J, 2010,7:300.
[4]	Cabrerizo M, Tarragó D, Muñoz-Almagro C, et al. Molecular epidemiology of enterovirus 71, coxsackievirus A16 and A6 associated with hand, foot and mouth disease in Spain[J]. Clin Microbiol Infect, 2014, 20(3):O150-O156.
[5]	Hosoya M, Kawasaki Y, Sato M, et al. Genetic diversity of coxsackievirus A16 associated with hand, foot, and mouth disease epidemics in Japan from 1983 to 2003[J]. J Clin Microbiol, 2007, 45(1) :112-120. pmid: 17093028
[6]	Wang JY, Teng Z, Chu W, et al. The emergence and spread of one Coxsackievirus A16 Genogroup D novel recombinant strain that caused a clustering HFMD outbreak in Shanghai,China, 2016[J]. Emerg Microbes Infect, 2018, 7(1):131.
[7]	Hassel C, Mirand A, Farkas A, et al. Phylogeography of coxsackievirus A16 reveals global transmission pathways and recent emergence and spread of a recombinant genogroup[J]. J Virol, 2017, 91(18):e00630-e00617.
[8]	Zhang Y, Wang DY, Yan DM, et al. Molecular evidence of persistent epidemic and evolution of subgenotype B1 coxsackievirus A16-associated hand, foot, and mouth disease in China[J]. J Clin Microbiol, 2010, 48(2):619-622. doi: 10.1128/JCM.02338-09 pmid: 20018819
[9]	Han ZZ, Song Y, Xiao JB, et al. Genomic epidemiology of coxsackievirus A16 in mainland of China, 2000-18[J]. Virus Evol, 2020, 6(2):veaa084.
[10]	马婉婉, 龚磊, 肖永康, 等. 2015—2022年安徽省手足口病流行病学特征及病原谱变化[J]. 安徽医科大学学报, 2023, 58(10):1763-1768.
[11]	卫生部. 手足口病预防控制指南(2009版)[J]. 全科医学临床与教育, 2010, 8(2):125-127,133.
[12]	蔡靖靖, 栾荣生. 2017—2022年四川省法定传染病流行特征分析[J]. 现代预防医学, 2023, 55(9):1566-1571.
[13]	尼格德力·阿力腾赛尔, 张璇, 陈媛, 等. 2018—2022年新疆维吾尔自治区手足口病流行特征分析[J]. 热带病与寄生虫学, 2023, 21(4):191-194,215.
[14]	温莹, 罗日景, 程雁鹏, 等. 2013—2022年深圳市托幼儿童传染病流行特征及趋势分析[J]. 现代预防医学, 2024,(1):149-155.
[15]	国务院应对新型冠状病毒感染疫情联防联控机制综合组. 关于印发对新型冠状病毒感染实施“乙类乙管”总体方案的通知[A/OL].(2022-12-06)[2023-07-09]. http://www.nhc.gov.cn/xcs/zhengcwj/202212/e97e4c449d7a475794624b8ea12123c6.shtml.
[16]	张雨桐, 宋杨, 刘凤凤, 等. 新型冠状病毒感染“乙类乙管”后我国手足口病流行特征与趋势分析[J]. 热带病与寄生虫学, 2023, 21(4):186-190,227.
[17]	史永林, 王贤, 陈国平, 等. 2014年安徽省柯萨奇病毒A组16型分离株VP1基因特征研究[J]. 病毒学报, 2015, 31(6):660-664.
[18]	冯明子, 傅荔艳, 葛盈露, 等. 2016—2020年安徽省手足口病相关柯萨奇病毒A组16型分子分型研究[J]. 热带病与寄生虫学, 2023, 21(4):199-203.
[19]	史永林, 葛盈露, 马婉婉, 等. 2018—2019年安徽省柯萨奇病毒A组16型B1基因亚型分离株分子特征分析[J]. 疾病监测, 2022, 37(8):1027-1032.
[20]	安徽省疾病预防控制中心. 安徽省2018年手足口病疫情专题风险评估报告[J]. 安徽预防医学杂志, 2018, 24(3):156-159.
[21]	Yi LN, Zeng HR, Zheng HY, et al. Molecular surveillance of coxsackievirus A16 in Southern China, 2008-2019[J]. Arch Virol, 2021, 166(6):1653-1659. doi: 10.1007/s00705-021-05052-8 pmid: 33796884
[22]	黄京京, 韦欢欢, 陈飞, 等. 2018—2019年北京市柯萨奇病毒A组16型分子流行病学研究[J]. 微生物学免疫学进展, 2023, 51(1):40-48.
[23]	李希尚, 赵丽娟, 伏晓庆, 等. 云南省保山市2022年手足口病病例柯萨奇病毒A16型基因特征[J]. 中国热带医学, 2023, 23(10):1104-1108. doi: 10.13604/j.cnki.46-1064/r.2023.10.16
[24]	王珊, 焦伯延, 冯强, 等. 2021年济宁市柯萨奇病毒A16型流行特点及全基因组特征[J]. 山东大学学报(医学版), 2023, 61(5):90-95.
[25]	Hoa-Tran TN, Dao ATH, Nguyen AT, et al. Coxsackieviruses A6 and A16 associated with hand, foot, and mouth disease in Vietnam, 2008-2017: essential information for rational vaccine design[J]. Vaccine, 2020, 38(52):8273-8285. doi: 10.1016/j.vaccine.2020.11.031 pmid: 33223308
[26]	魏雷雷, 沈博, 赵庆龙, 等. 吉林省2018—2021年柯萨奇病毒A组16型病毒基因特征分析[J]. 中国卫生工程学, 2023, 22(3):329-331.
[27]	徐莉, 崔大伟, 戴玉柱, 等. 浙江省柯萨奇病毒A16 VP1基因特征分析及B细胞抗原表位预测[J]. 临床检验杂志, 2017, 35(1):65-71.

年份	VP1区基因序列数	B1a亚型		B1b亚型
年份	VP1区基因序列数	毒株数	占比（%）	毒株数	占比（%）
2021	24	18	75.00	6	25.00
2022	36	28	77.78	8	22.22
2023	12	12	100.00	0	0
合计	72	58	80.56	14	19.44

基因型/亚型	3	11	13	14	15	17	19	22	23	26	33	36	43	59	61	79	119	139	164	179	183	213	215	217	220	251
A/G-10	G	A	T	S	R	G	A	S	L	E	N	E	L	Q	E	T	M	A	T	I	L	A	P	S	A	V
2021-B1a（n=18）	P	T	N	N	Q	N	S	A/T	L	L	E	S	V	S	K	A	L	V	K	V	M	E	L	A/V	L	I
2022-B1a（n=28）	P	T	N	N	Q	N	S	A/T	L	L	E	S	V	S	K/R	A	L	V	K	V	M	E	L	A	L	I
2023-B1a（n=12）	P	T	N	N	Q	N	S	A/T	L	L	E	S	V	S	K/R	A	L	V	K	V	M	E	L	A	L	I
2021-B1b（n=6）	P	T	N	S	Q	N	S	A	M	L	E	S	V	S	K	A	L	V	T	V	M	E	L	A	L	V
2022-B1b（n=8）	P	T	N	S	Q	N	S	A	M	L	E	S	V/I	S	K	A	L	V	T	V	M	E	L	A	L	V
